광학용 좀/접착제




Acryl PSA(Thermal curing type)

관리자 2015-01-08 21:47:40 view : 2358



 General Properties

Item Specifications Results
APSA-100A
外觀(Appearance) Clear Clear Liquid
固形粉(Solid Content) (%) 25.0 ± 3 % 25.0
粘度(Viscosity) (at 25℃, cP) 3,500±500 3,550
比重(Specific gravity) (at 25℃) 1.0 ± 0.1 1.02
硬化 條件 (Thermal) ~140℃, 5~10min 120~140℃, 5min
使用 Solvent - MEK, E.A, Toluene
硬化劑(Hardener) - Epoxy Based

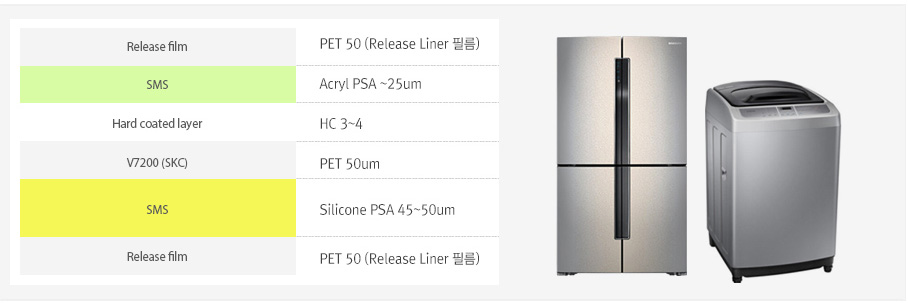

製品 Structure



 Specification

Product Viscosityat 25℃ (cPs)) Nonvolatile (%) Adhesion (Kg/25mm) Coating thickness, (um)
SUVA-100 3,500~4,000 25 1,500 20~30
SUVA-200 1,500~2,000 25 2,000 15~25

Instruction for Use

  • 主劑 : 硬化劑 = 100: 0.3~0.5 比率 混合(Mixing)
  • Drying(乾燥) : 120~140℃, 5min
  • Aging : 50℃, 24hr 以上
