광학/기능성 필름용 코팅액

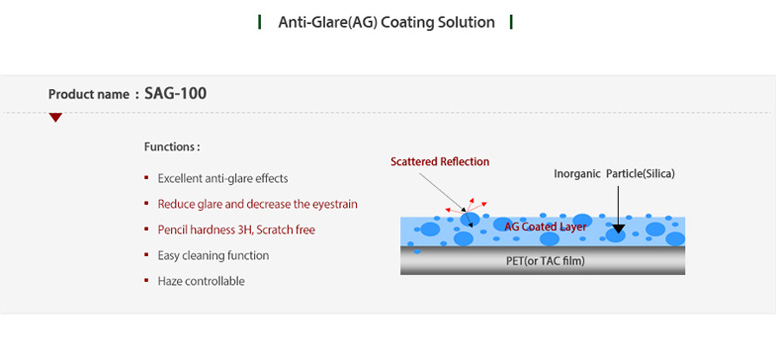

Anti-Glare(AG) Coating Solution

관리자 2015-01-08 21:42:09 view : 7703


 Characteristics : Liquid

Item Unit Representative Value
Appearance - Clear liquid
Viscosity (25 ℃) cps 3~5
Specific gravity (25 ℃) - 0.98
Non Volatile Content % 25~30
Solvents - MCS, MEK, PGME
　 　 　

 Characteristics : H/C film (PET)

Test Item Check item Unit Conditions Results
Substrate PET
Thickness 75㎛ / 100㎛ / 125㎛ / 188㎛
Transmittance 380~830nm % JIS-K-7105 90~91
Haze Haze % JIS-K-7105 2~8 (controllable)
Pencil Hardness - H JIS 5600-5-4 2~3
Scratch resistance Steel wool - 500g, 10times No Scratch
Adhesion Cross cut B ASTM-D-3359 100/100
HTHH (85℃, 85% RH) 500hrs 85℃, 85% RH for 500hrs No Change
TST (-40℃~ 80℃/ 60min) 50cycles -40℃ ~ 80℃/60min/ for 50cycles No Change
