광학/기능성 필름용 코팅액

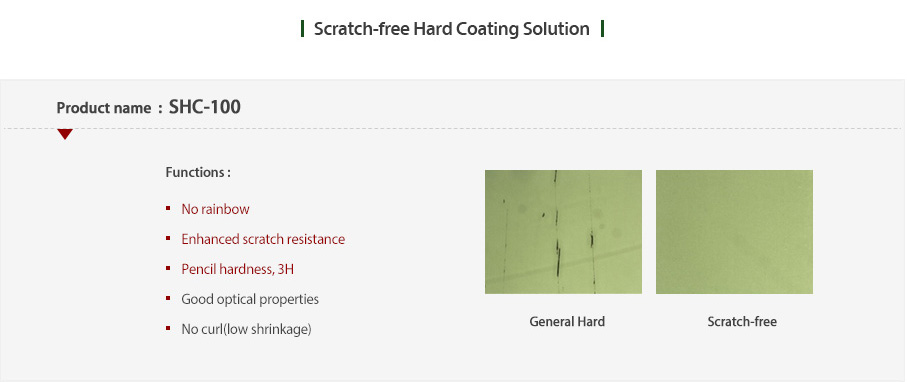

Scratch-free Hard Coating Solution

관리자 2015-01-08 21:42:54 view : 4702



 Characteristics : Liquid

Item Spec Representative Value
Appearance - Clear liquid
Base Solvents - PGME, MEK
Solid Content(%) - 28~30
Viscosity(cPs, 25℃) 5.0±2.0 5.0~6.0
pH 6~8 7.0
UV Curing (mJ/cm2) < 1,000 250~500


 Characteristics : H/C film (PET)

Properties SHC-100 Test Method
Optical Transmittance (%) 92% JIS-K7105
Haze(%) 0.2% JIS-K7105
Physical Pencil Hardness 3H JIS-K5600-5-6
Adhesion(Cross cut test) 100/100 JIS K5400
Scratch resistance No damage Steelwool #0000, 1Kg
Chemical 5% Acid Solutions No appearance change Immersion 24Hr
5% Alkali Solutions No appearance change Immersion 24Hr
